Used 2010 Jayco Eagle 322FKS

Travel Trailer

Stock #A13473

Coldwater, MI

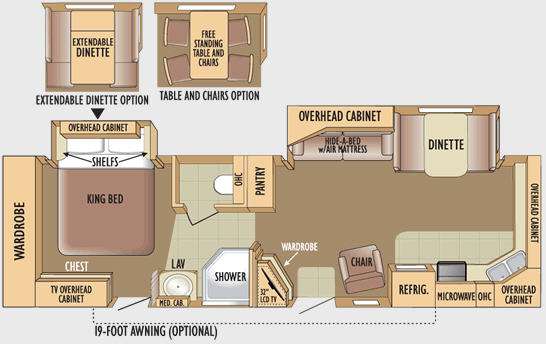

Floorplan - 2010 Jayco Eagle 322FKS

1 of 21

+21

Asking Price: $15,000

Sleeps 6
2 Slides
Front Kitchen

Rear Bedroom

34ft Long
7,930 lbs
Coffee, Almond & Willow

See All Specs

Specifications

Sleeps	6	Slides	2
Length	33 ft 11 in	Ext Height	11 ft 2 in
Int Height	6 ft 9 in	Interior Color	Coffee, Almond & Willow
Hitch Weight	1155 lbs	GVWR	10250 lbs
Dry Weight	7930 lbs	Cargo Capacity	2320 lbs
Fresh Water Capacity	50 gals	Grey Water Capacity	86 gals
Black Water Capacity	49 gals	Tire Size	15"

Features

Standard Features (2010)

Fifth Wheels

Customer Value Package

Water purifier
Skylight in tub/shower
Bathroom power vent
Security lights (2)
Microwave oven with carousel
Floor-mounted safe
Foldable, exterior grab handle
Multi-Media Premium Sound System™ AM/FM/CD/DVD stereo with MP3 input jack
Deluxe pillowtop mattress
Carefree® Travel'r 12 volt electric patio awning
15,000 BTU A/C with louvered and directional ceiling vents
12-gal. gas/electric DSI auto-ignition water heater
Vacuum-bonded 5" crowned laminated roof with R-21 Insulation

Standard Heat, Power & Water Equipment

Uni-Dock™ utility center, heated and enclosed
A/C Chillgrille™
Black holding tank sprayer
Outside shower
In-floor ducted heating
Auto-ignition furnace with wall thermostat
120V G.F.C.I. protected exterior receptacle
50-amp power cord
12V demand water pump
12V electrical system with deluxe 120V 80-amp power converter
Hook-up for city water
Systems monitor panel
Water heater bypass system
Water system winterization kit
Double 30-lb. propane bottles with regulator
Battery box for two batteries
ABS holding tanks
Rotocast fresh water holding tanks

Standard Kitchen Equipment

Deep storage drawers under booth dinette
Decorative wood spindles on base cabinets
Antique brass high-rise faucet
Extra large picture window at dinette
Bi-fold cover for range
Range hood with light and exhaust fan
3-burner range with 9,000-BTU SuperBurner™ and piezo igniter
Oversized 21" oven
8 cu. ft. flush-mount refrigerator with double door
Color-coordinated countertops
Sink cover/cutting board (1)
Deep residential-style sink
Dream Dinette™ mechanism, raises and lowers dinette table top
Sponge holder under sink

Standard Exterior Equipment

Front jacks with quick-release pins
Outdoor media center
Roof ladder
Big Easy™ entrance step with 10" deep treads
Spare tire with carrier
Rain guttering, molded with drip spouts
Galvanized steel wheel wells
Chrome hub caps
MOR/ryde® CRE 3,000 axle equalizer
Baggage doors, lockable, insulated and radius-cornered with heavy-duty grab handles
Electric-powered front jacks
Screened egress bunk windows
Bumper with drain hose carrier and end caps
White-framed radius-cornered fiberglass main entry door
12V hitch light
16" radial tires
E-Z lube® axles
Rear stabilizer jacks (2)
Prep for outside grill
Amber patio light with inside switch
Exterior speakers, high-output marine grade (2)
Stor-Galore™ basement storage
Painted bottom radius skirting
Torq-N-Go™ wheel nuts
Dexter® Nev-R-Adjust™ brakes

Standard Safety Equipment

Propane/carbon monoxide alarm
Tinted safety-glass windows
Egress window
Breakaway switch
Smoke alarm
Deadbolt lock on entrance door
Fire extinguisher

Standard Interior Equipment

Roof-mounted antenna for radio
Wallpaper border
32" LCD HDTV in living area
Ceiling fan
Arched step treads into bathroom
Residential trim package throughout
Transom window with wood trim above main slideout room
Hardwood message center (select models)
Swivel rocker(s) (select models)
Solid hardwood interior grab handle for main entrance door
Overhead cabinets in slideout room
Ventilating windows on slideout end walls
Antique brass lighting at sofa and dinette
Crank-up HDTV antenna with signal booster
Residential furniture, designed and made by Jayco®
Pleated day/night shades throughout
Trackless carpeting with padding
Fabric-covered box valances with lambrequin legs
Hide-a-bed sofa (air mattress)
High-intensity 12V lighting package
Antique brass cabinet hardware
Free-standing end table
Cable and satellite TV prepped
Cabinet door hinges, hidden throughout
Ball bearing drawer guides 75-lb. capacity with full-drawer extension

Standard Bedroom Equipment

Dresser lamp
Decorative headboard
Accordion door to bedroom (select models)
TV cabinet (select models)
Under-bed storage, bed lifts easily on gas struts
Coordinated, quilted bedspread
Laundry hamper

Standard Bathroom Equipment

Vinyl flooring
Towel ring
Toilet paper holder
Vanity light fixture
Residential 6-panel passage door
Thetford porcelain toilet with foot flush
Radius-glass shower door
Switches for all lights
Towel holder
Medicine cabinet with mirror
ABS tub/shower surround
Large sink in bathroom

Standard Construction Features

Cabinetry crafted with screwed-stile construction
5/8" tongue-and-groove plywood main floor decking
Frame prepped for bike rack/cargo tray
2"x3" longitudinal floor studs placed on 16" centers
Electric-powered slideout
FRP smooth fiberglass sidewall exteriors
Aerodynamic wrap-around front fiberglass cap
Pin box, long
Poly Flex one piece moisture barrier underbelly covering
Seamless one-piece rubber roof
TuffShell vacuum-bonded laminated sidewalls
Welded tubular aluminum sidewall framework
Bead-foam insulation in sidewalls and roof
Platforms for dinette, bed and bunks are constructed for 1/2" plywood
Heated and enclosed fresh water tank and holding tanks
R-21 insulation in roof, R-9 in sidewalls, R-24 in floor and underbelly, R-15 in slideout floors
I-Class cambered structural steel I-beam frame
Reflective foil insulation in slideout floors
Polar Barrier insulation package
TuffShell vacuum-bonded 5" crowned laminated roof
Reflective foil insulation in main floor
Fully-decked roof with 1/4" plywood

Premier Interior Package

Burnished hardwood slideout fascia boards
Corian hi-gloss kitchen countertop with sink cover inserts
Upgraded hide-a-bed sofa with air mattress
Upgraded bedding package
Stainless-steel under-mount kitchen sink
Stainless-steel oven with stainless range top and cover
Rustic plank wood-grain vinyl flooring in kitchen and bath
Recessed halogen ceiling lights
Power lift vent in living room and/or rear bedroom
Nickel single-lever kitchen faucet with pull-out sprayer
Cherry-stained, burnished cabinetry

Travel Trailer

Standard Exterior Equipment

15" radial tires
Baggage doors, lockable, insulated and radius-cornered with heavy-duty grab handles
Bumper with drain hose carrier and end caps
Chrome hub caps
Cover for propane bottle made of molded ABS
Diamond-plated panel on front
Screened egress bunk windows
E-Z Lube axles
Front window includes fiberglass stone guard (select models)
Galvanized steel wheel wells
Amber patio light with inside switch
Rain guttering, molded with drip spouts
Stabilizer jacks (2 pair)
Big Easy entrance step with 10" deep treads
Spare tire with carrier
MOR/ryde CRE 3,000 axle equalizer
Painted bottom radius skirting
Exterior speakers, high-output marine grade (2)
Pass-through storage compartment
MaxiStor (select models)
Prep for outside grill
White-framed radius-cornered fiberglass main entry door
2-5/16" hitch coupler
ABS fender skirt
Dexter Nev-R-Adjust brakes
Foldable, exterior grab handle
Torq-N-Go wheel nuts

Standard Safety Equipment

Breakaway switch
Dual hitch safety chains
Fire extinguisher
Deadbolt lock on entrance door
Egress window
Smoke alarm
Tinted safety-glass windows
Propane/carbon monoxide alarm

Standard Heat, Power & Water Equipment

In-floor ducted heating
120V G.F.C.I. protected exterior receptacle
12V demand water pump
12V electrical system with deluxe 129V 45-amp power converter
30-amp power cord
Double 30-lb. propane bottles with regulator
Auto-ignition furnace with wall thermostat
Hook-up for city water
Systems monitor panel
Outside shower
Water system winterization kit
A/C Chillgrille
Black holding tank sprayer
ABS holding tanks
Gravity fill for water

Customer Value Package

13,500-BTU A/C with wall thermostat with louvered directional ceiling bents
10-gal gas/electric DSI auto-ignition water heater
Carefree Travel'r 12 volt electric patio awning
Deluxe pillowtop mattress
Foldable, exterior grab handle
Multi-Media Premium Sound System AM/FM/CD/DVD stereo with MP3 input jack
Microwave oven with carousel
Bathroom power vent
Security lights (2)
Skylight in tub/shower
Water purifier
Foldable, exterior grab handle

Standard Construction Features

81" ceiling height
FRP smooth fiberglass sidewall exteriors
Platforms for dinette, bed and bunks are constructed of 1/2" plywood
Seamless one-piece rubber roof
Welded tubular aluminum floor and sidewall framework
TuffShell vacuum-bonded laminated sidewalls and floor
Cabinetry crafted with screwed-stile construction
Electric-powered slideout
Poly Flex one piece moisture barrier underbelly covering
Heated and enclosed fresh water tank and holding tanks
4-1/2" arched truss roof rafters with R-7 insulation
I-Class cambered structural steel I-beam frame
Fully-decked roof with 3/8" plywood
Bead-foam insulation (R-7 sidewalls, R-9 in floor)
Frame prepped for bike rack/cargo tray
Reflective foil insulation in slideout floors
Reflective foil insulation in roof

Standard Kitchen Equipment

Deep storage drawers under booth dinette
3-burner range with 9,000 BTU SuperBurner and piezo igniter
8 cu. ft. flush-mount refrigerator with double door
Bi-fold cover for range
Sink cover/cutting board (1)
Deep residential-style sink
Drawer for silverware, divided for utensils
Extra large picture window for dinette
Oversized 21" oven
Range hood with light and exhaust fan
Antique nickel high-rise faucet
Color-coordinated countertops
Sponge holder under sink
Dream Dinette mechanism, raises and lowers dinette table top
Manchester Oak raised-panel refrigerator front
Mini blind

Standard Interior Equipment

Cable and satellite TV prepped
Wallpaper border
Roof-mounted antenna for radio
Residential furniture, designed and made by Jayco
Trackless carpeting with padding
Crank-up HDTV antenna with signal booster
Pleated day/night shades throughout
Antique nickel lighting at sofa and dinette
Fabric-covered box valances with lambrequin legs
Manchester Oak raised-paneled doors and drawers throughout
High-intensity 12V lighting package
Hide-a-bed sofa (air mattress)
Linoleum floor in entryway
Antique nickel cabinet hardware
Oak trim around main entrance door
Overhead cabinetry in slideout room
Ventilating windows on slideout end walls
Solid hardwood interior grab handle for main entrance door
Swivel rocker(s) (select models)
Hardwood message center (select models)
32" LCD HDTV in living area
Ball bearing drawer guides 50-lb. capacity with full-drawer extension

Standard Bathroom Equipment

Vinyl flooring
Towel ring
ABS tub/shower surround
Marine toilet with foot flush
Medicine cabinet with mirror
Switches for all lights
Towel holder
Residential 6-panel passage door
Glass shower door (select model)
Vanity light fixture
Toilet paper holder
Large sink in bathroom

Standard Bedroom Equipment

Accordion door to bedroom (select models)
Under-bed storage, bed lifts easily on gas struts
Coordinated, quilted bedspread
Large pass-through storage (select models)
TV cabinet (select models)
Decorative headboard

Options

Fifth Wheel

King bed
Fireplace with Ledgestone facade
Washer/Dryer combination
2 Rocker recliners ILO 2 swivel rockers
Thermal pane tinted safety glass windows
2nd 13,5000 BTU A/C in Bedroom
5500 Watt generator (generator prep included)
Canadian standards
CD Stereo in Bunk
Customer Value Package 15,000 BTU central air; Security lights (2); Folding exterior grab handle; Bathroom power vent; Multi-Media Premium Sound System CD player w/MP3 input jack; Water purifier; Deluxe pillowtop mattress; Bath skylight; 12 gal gas/electric auto ignition water heater; Carefree electric awning; Microwave; Floor safe; Vacuum bonded 5" crowned laminated roof w/R-21 insulation
Linoleum in living area
Portable, outside gas grill
Aluminum rims
Slideout Awnings (2)
Slideout Awnings (3)
Slideout Awnings (4)
Key fob remote control-Control for patio awning, slideouts, front stabilizer jacks and patio light
Generator prep
Satellite kit- Tripod; dish; coax cable; electronic satellite finder; installation video
Fireplace
Bike rack/cargo tray system
Premier Interior Package-New Cherry stained burnished cabinetry; High gloss Corian countertop in kitchen; High gloss Corian sink covers (2); Under mount double bowl stainless steel kitchen sink; Single lever stainless kitchen pullout faucet w/sprayer; Rustic plank wood grain vinyl flooring in kitchen and bath; Stainless three-burner range top w/cover; Stainless oven; Burnished slideout hardwood fascia boards; Recessed halogen ceiling light throughout; Upgrade bedding package; Upgrade hide-a-bed sofa w/air mattress; Power lift vent in living room and/or rear bedroom
40" LCD HDTV ILO 32" LCD HDTV

Travel Trailer

Satellite kit-Tripod; dish; coax cable; electronic satellite finder; installation video
Customer Value Package-13,500 BTU central air; Security lights (2); Folding exterior grab handle; Bathroom power vent; Multi-Media Premium Sound System CD player w/MP3 input jack; Water purifier; Deluxe pillow top mattress; Bath skylight; 10 gal gas/electric auto ignition water heater; Carefree electric awning; Microwave
Roof ladder
Linoleum floor in living area
Portable, outside gas grill
Thermal pane tinted safety glass
Canadian Standards
Customer Value Package with 15,000 BTU central air upgrade
Glass shower door
2 Rocker recliners ILO 2 swivel rocker
Slideout awnings
Bike rack/cargo tray system
Aluminum Rims

See us for a complete list of features and available options.

All features and specifications are subject to change.

Favorite RVs

Save your favorite RVs as you browse. Begin with this one!

I’d recommend Haylett and Tim if you are thinking about an RV.
We are beyond pleased with our purchase of our Rockwood travel trailer. We loved our previous purchase 3 years ago and had an excellent experience with Haylett RV and Tim Cummings…so it was a no brainer for us to return when it was time to upgrade.
We told Tim what we were looking for and showed us

Kevin
Great experience!
I’m not sure how I stumbled upon Haylett Rv. But at night instead of turning the tv on and fill my head with crap I’m going to forget about in two days I watch the Haylett Rv YouTube channel. The videos are very informant especially to a newcomer to the Rv world. I’ve toyed with the idea to buy a travel

Sam
Thank you to the entire Haylett team for making our camper dream
My husband and I purchased our 2017 Wildcat Bunk House travel trailer a few weeks ago and Haylett RV made everything as smooth as possible! It was a truly extraordinary experience to deal with such honest people. You will not be disappointed by sales tactics or price gimmicks at Haylett. They are straight

Kayann

We are here to help, call us at
517-893-4289 or Contact Us

We are here to help!

517-893-4289
Contact Us
Contact Sales

Haylett Trailers is not responsible for any misprints, typos, or errors found in our website pages. Any price listed excludes sales tax, registration tags, and delivery fees. Manufacturer-provided pictures, specifications and features may be used as needed. Inventory shown may be only a partial listing of the entire inventory. Please contact us at 517-893-4289 for availability as our inventory changes rapidly. All calculated payments are an estimate only and do not constitute a commitment that financing or a specific interest rate or term is available.

Manufacturer and/or stock photographs may be used and may not be representative of the particular unit being viewed. Where an image has a stock image indicator, please confirm specific unit details with your dealer representative.

Used 2010 Jayco Eagle 322FKS

322FKS Floorplan

Specifications

Description

Features
